Custom Furnace Chambers & Shapes | 1400°C – 1900°C
Product Overview

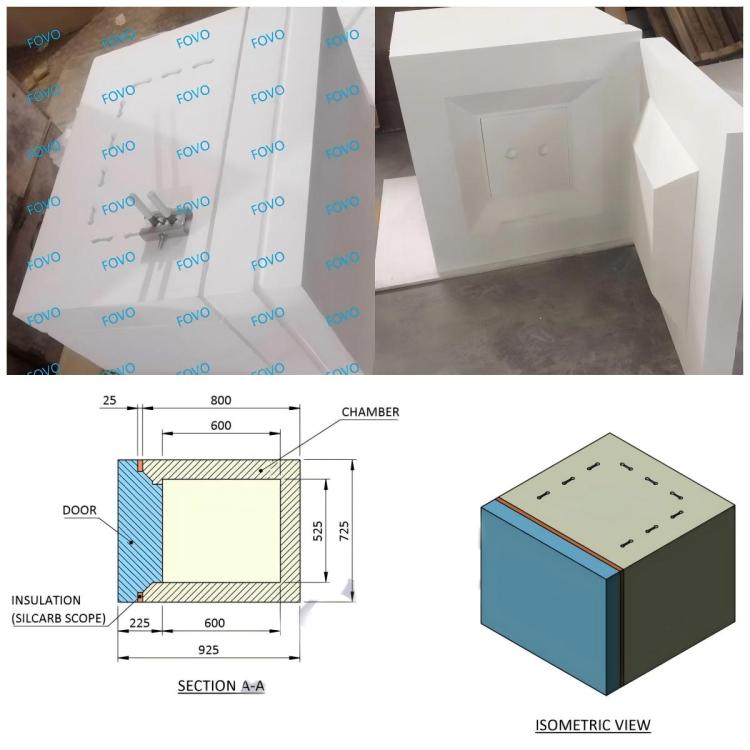

Our custom furnace chambers are precision‑machined from high‑purity ceramic fiber materials, tailored exactly to your drawings. Suitable for high-temperature applications with classification grades from 1400°C to 1900°C. Lead time: 15–21 days. Any shape, any size – built for laboratory atmosphere furnaces, R&D units, and retrofit projects.
Why Choose FOVO Custom Shapes?
- No minimum order — Single piece orders welcome, ideal for R&D and lab applications
- Any shape, any size — Complex geometries, stepped edges, holes, grooves, or full chambers
- No mold fees — Custom fabrication without extra tooling costs
- Precision fit — ±1mm dimensional accuracy
- Fast turnaround — 15–21 days lead time from drawing confirmation
- Free design review — Our engineers will check your drawings and provide feedback within 24 hours
Key Features
- Any shape, any size – machined to your exact specifications
- Ready to install – pre‑cut, pre‑shaped, inspected before shipping
- High temperature resistance – classification up to 1900°C
- Low thermal conductivity – reduces energy loss, improves temperature uniformity
- No minimum order – one piece or one hundred
- Fast turnaround – 15–21 days lead time for custom orders
Technical Specifications
| Item | Specification / Capability |
|---|---|
| Classification Temperature (°C) | 1400 / 1500 / 1600 / 1700 / 1800 / 1900 |
| Regular Shape | Flat board, semi‑round, round, tube, box type, and any complex geometry |
| Size (mm) | According to customer drawings – no fixed limits |
| Density (kg/m³) | 280–600 (depending on temperature grade) |
| Linear Shrinkage (%) | <2% (at max continuous use temperature, 24h) |
| Al₂O₃ (%) | 45 – 76 (based on temperature grade) |
| Typical Lead Time | 15–21 days for custom orders |
Typical Applications

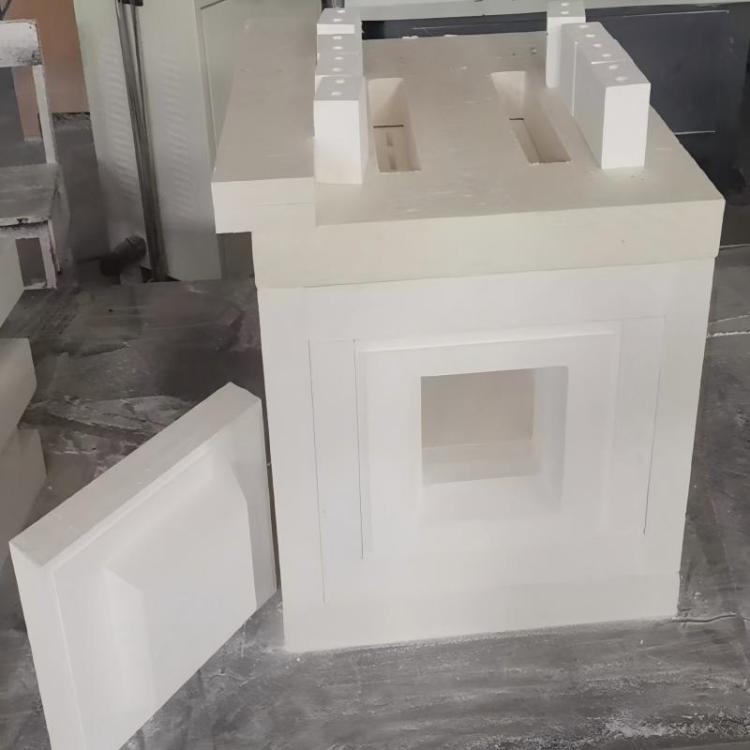

Laboratory Atmosphere and Muffle Furnace Chambers
Custom‑shaped chambers for muffle furnaces and atmosphere‑controlled laboratory furnaces. Chambers can be machined as one‑piece or segmented designs to accommodate different heating element configurations and temperature requirements. Precise dimensional control ensures minimal clearance gaps and optimal thermal efficiency.
Vacuum Furnace Hot Zone Liners
High‑purity ceramic fiber chambers for vacuum furnace hot zones. Low outgassing characteristics prevent contamination of processed materials. Suitable for both graphite and metal hot zone configurations with temperature ratings up to 1900°C.
Tube Furnace Split Chambers
Clam‑shell and split‑type chambers for tube furnaces. Designed for easy access to work tubes and heating elements. Available in multiple temperature grades with precision‑machined mating surfaces for uniform heat distribution along the tube axis.
R&D and Pilot Plant Reactor Liners
Custom‑engineered chambers for pilot‑scale reactors and R&D test equipment. Complex geometries with integrated ports, viewing windows, and thermocouple penetrations can be machined directly from customer drawings.
Retrofit and Replacement Chambers
Replacement chambers for aging or damaged furnace linings. Existing furnace dimensions can be measured and replicated to restore original performance or improve thermal efficiency.
Selection Guide: Which Thickness Should I Choose?
| Continuous Operating Temperature | Recommended Classification Grade | Recommended Thickness | Notes |
|---|---|---|---|
| ≤ 1250°C | 1400°C | 25 – 50 mm | Standard insulation thickness |
| 1250°C – 1450°C | 1600°C | 50 – 75 mm | Increased thickness for energy efficiency |
| 1450°C – 1650°C | 1700°C – 1800°C | 75 – 100 mm | Thick-walled design for demanding conditions |
| > 1650°C | 1900°C | 100 – 150 mm | Consult technical team for specific requirements |
Selection Notes:
- Chamber wall thickness affects thermal efficiency, heat-up time, and mechanical strength.
- Classification temperature ≠ continuous use temperature — the recommended continuous use temperature is approximately 150°C – 200°C lower than the classification temperature.
- Select the most appropriate grade and thickness based on actual operating temperature and furnace design — neither over-specify and waste budget, nor under-specify and shorten service life.
- For vacuum or specialty atmosphere applications, additional purification treatments may be recommended. Please consult our technical team for specific requirements.
Production Process
High-purity ceramic fiber raw materials precisely proportioned.

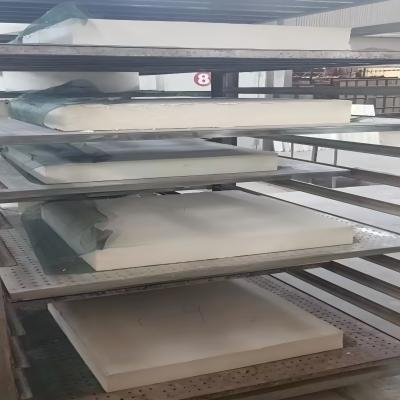

Wet vacuum forming into block or near‑net shape.
Controlled drying to remove moisture and stabilize dimensions.

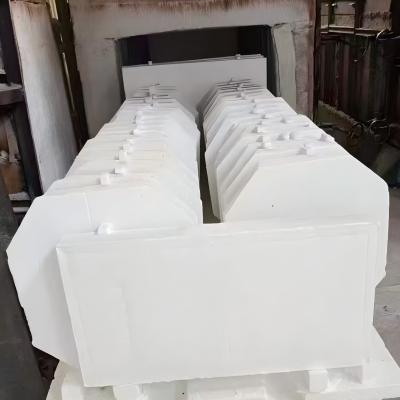

High-temperature sintering for strength and uniformity.
CNC cutting to exact drawing dimensions, including holes for heating elements.
Dry assembly check for fit and dimensional accuracy.
Cushioned cartons to prevent damage during transit.
By sea or air, with real‑time tracking.

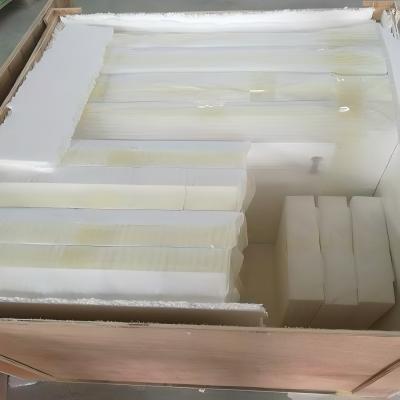

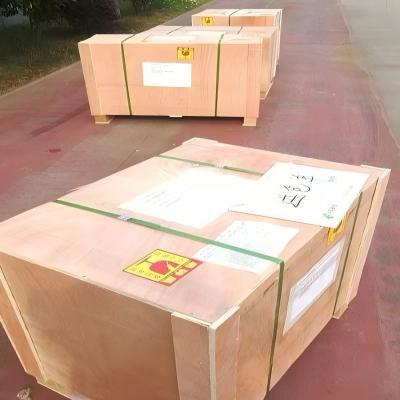

Packaging & Delivery
Foam‑lined cartons
Secure strapping
Air or sea freight
Related Accessories & Components

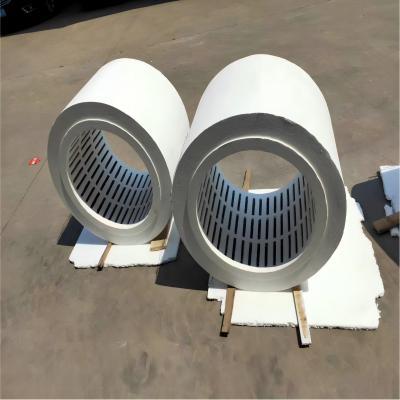

Heating system integrated with chamber

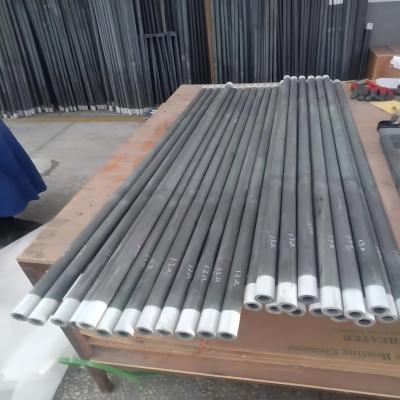

Resistance wire, SiC, MoSi₂, Kanthal
Additional insulation for furnace walls
Back‑up insulation, expansion joint filler
For bonding layers or fixing to shell

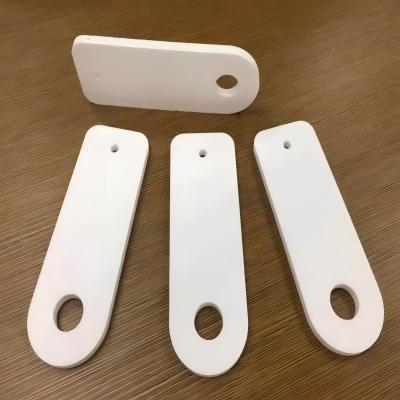

For suspending heating elements

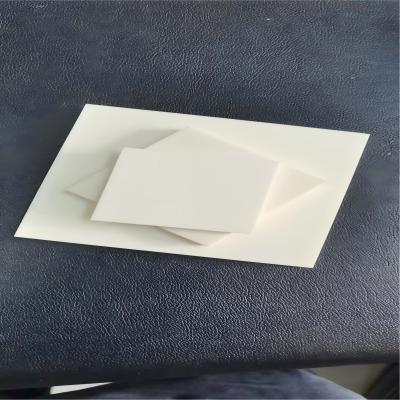

Insulating & positioning components

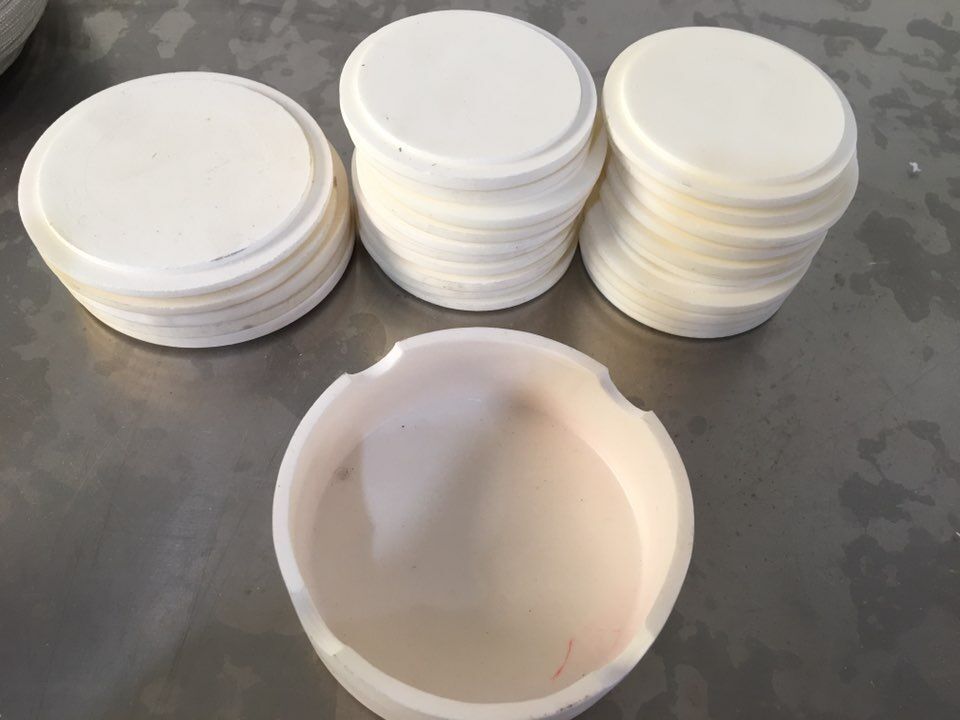

For melting, sintering, dental applications

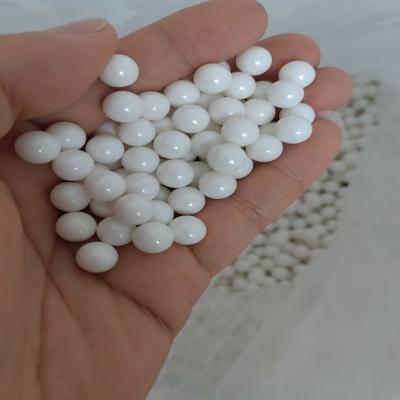

Grinding media or filler for dental sintering

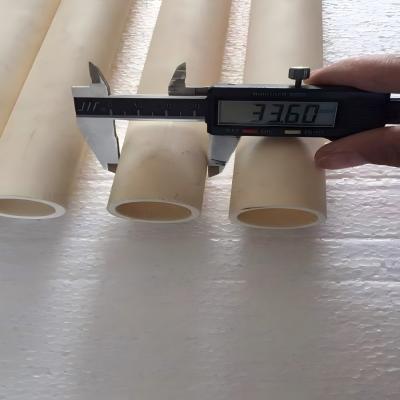

Structural support for large furnace roofs
Need Help with Selection?
Not sure which temperature grade or thickness suits your furnace? Share your operating temperature, furnace type, and specific requirements with us — our engineers will provide a free selection recommendation within 24 hours.
